SCIA Engineer BIM link for connection design (old)
1 How to activate the link
- Download and install (as administrator) the latest version of IDEA StatiCa
- Make sure that you are using the supported version of SCIA Engineer
IDEA StatiCa automatically integrates the BIM link into your CAD/CAE software during its installation. You can check the status and activate more BIM links for later installed software in the BIM link installer.
Open IDEA StatiCa and navigate to the panel BIM and open the BIM link installer. A notification "Run as administrator" may appear, please confirm with the Yes button.
Select the software to integrate the IDEA StatiCa BIM link, click the Install button and check the Installed status.
2 How to use the link
Download the attached project, open it in SCIA Engineer, and run the linear analysis to get the internal forces over the structure.
In the Main menu, go to the tab Steel.

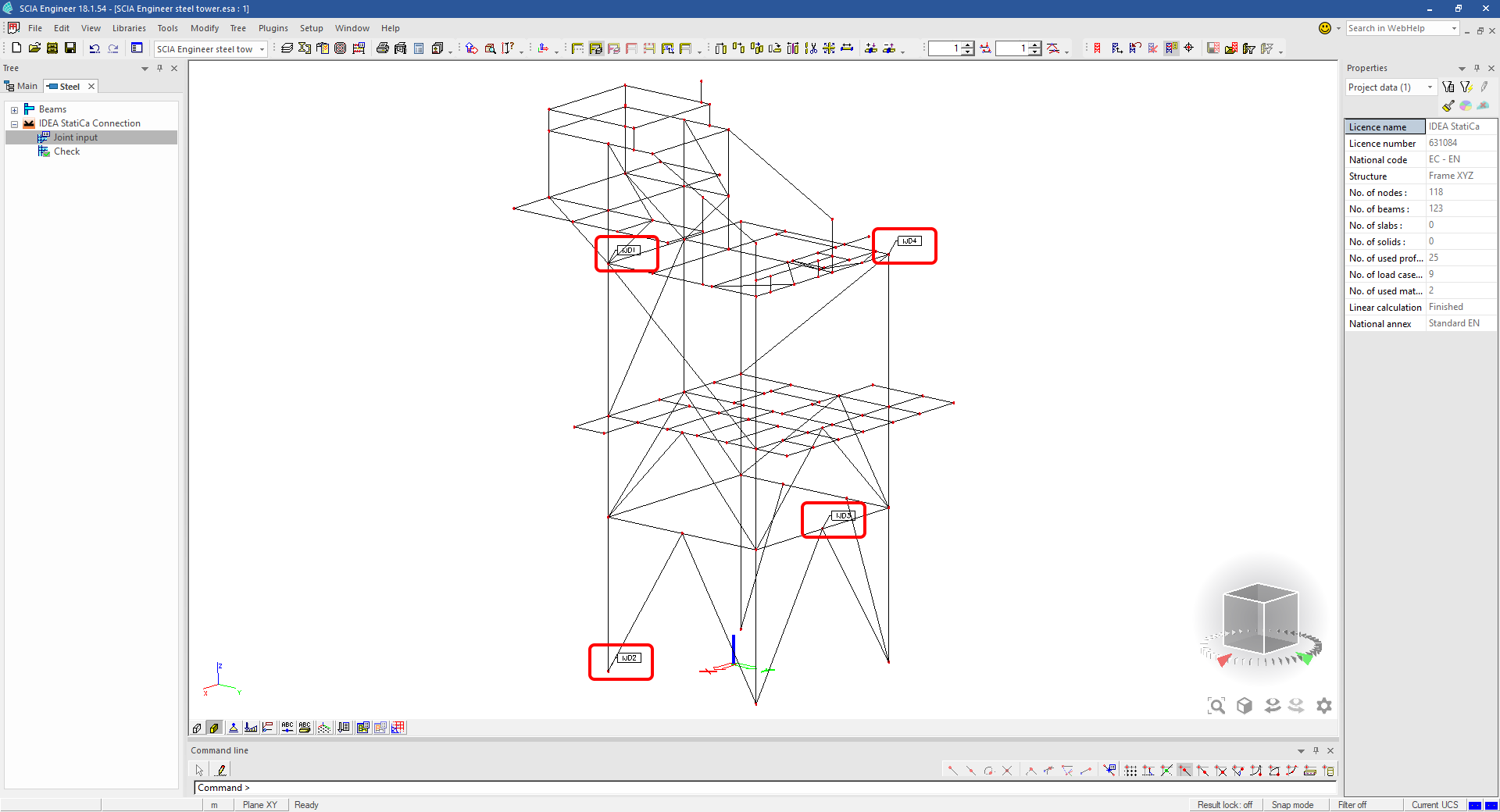

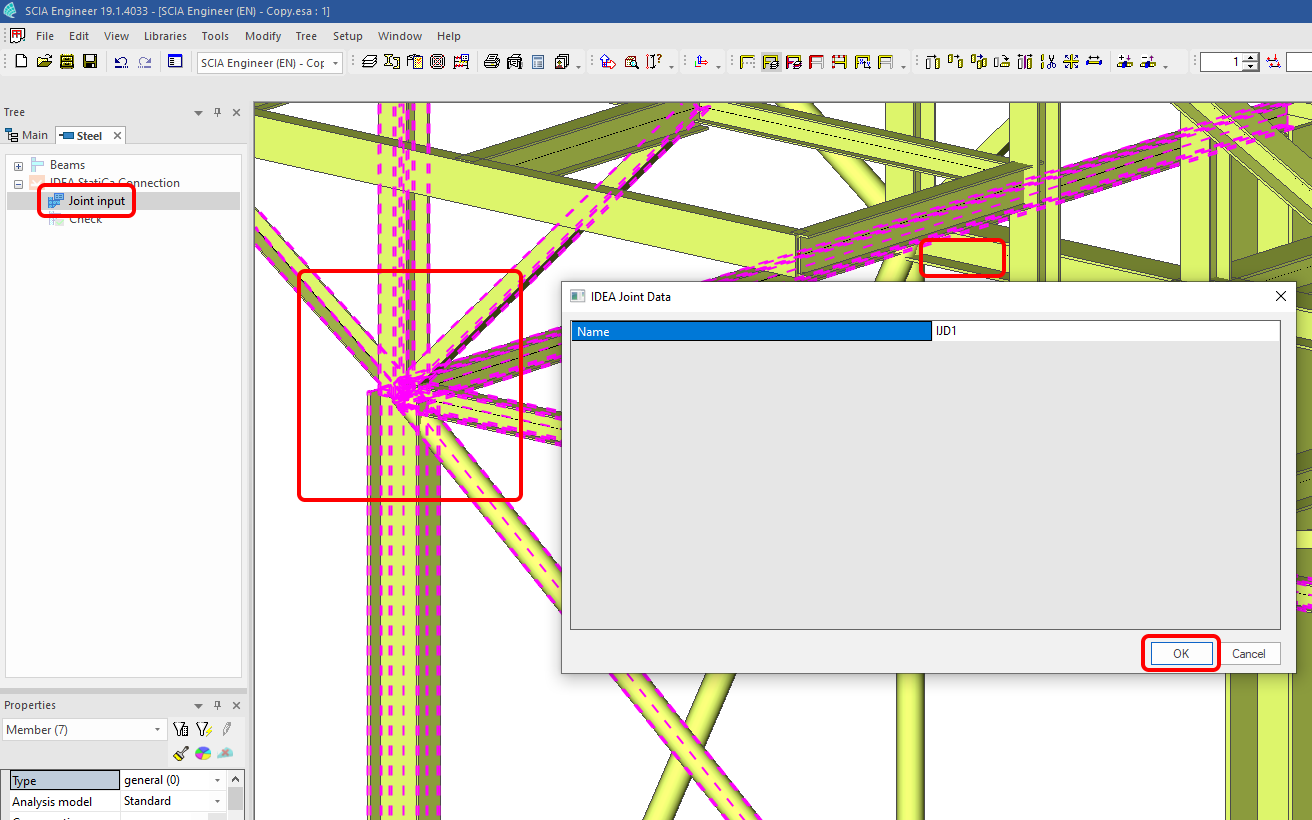

Go to the IDEA StatiCa Connection menu. Add a joint to this SCIA Engineer project list of joints by selecting the members of a joint, then by clicking on Joint input and typing the name of it (name of the IDEA StatiCa Connection project file) and OK.

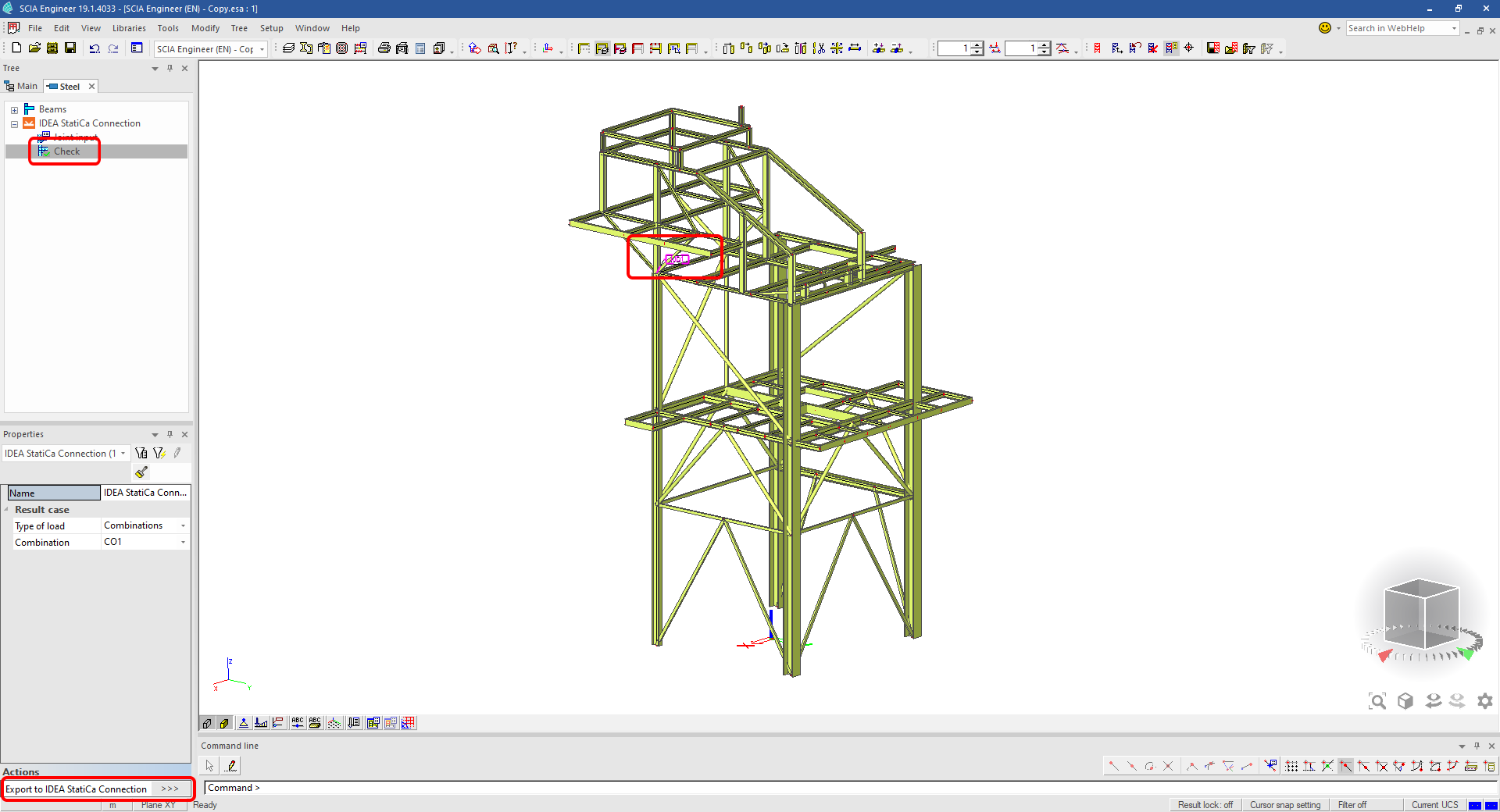

Open the command Check, run the command Export to IDEA Statica Connection in the Actions menu, and select the joint sign in the workspace.
Application IDEA StatiCa Connection opens and you can design connections of the joint.
3 Design

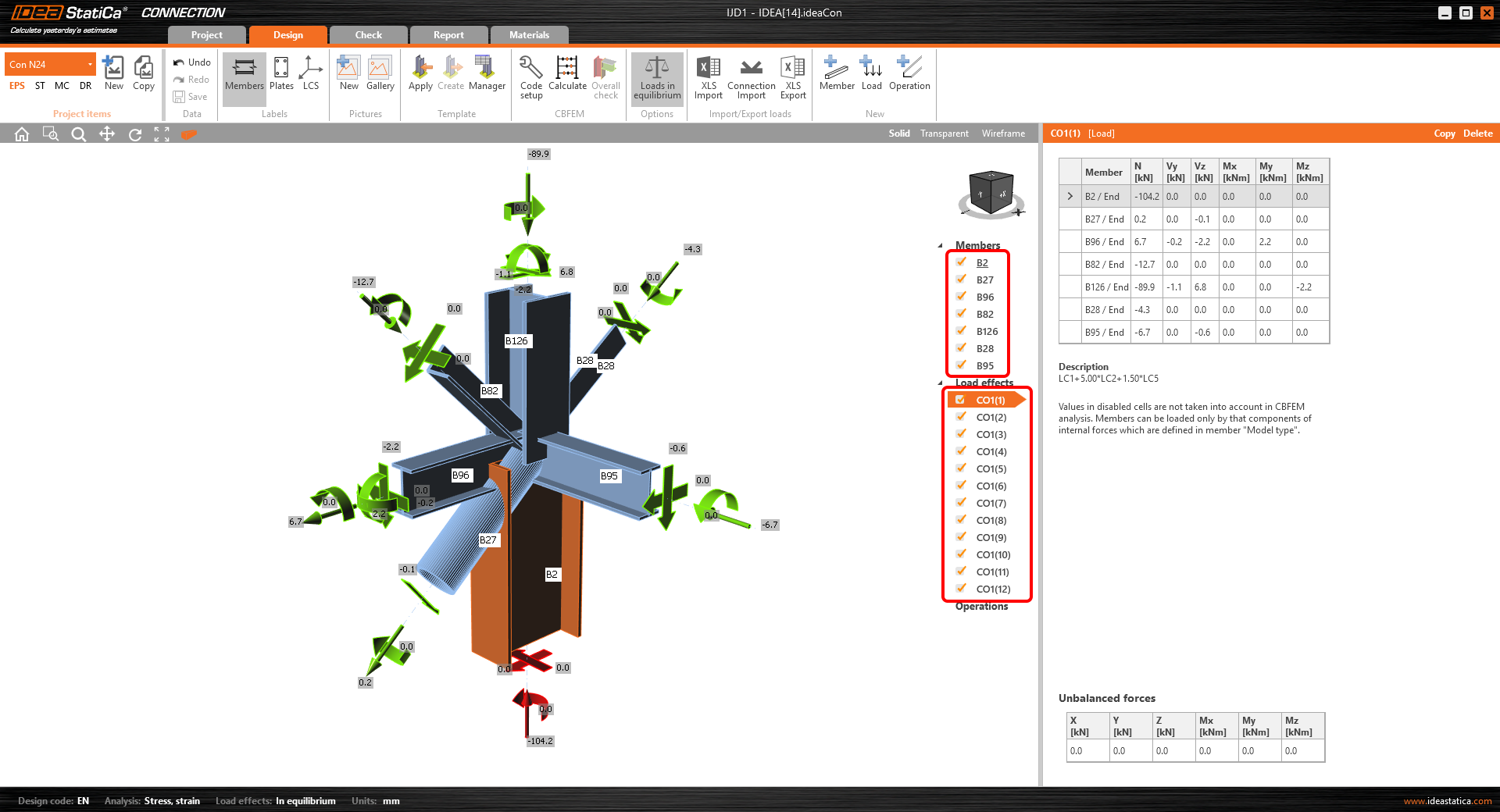

Joint geometry and load effects have been imported, you can start designing.

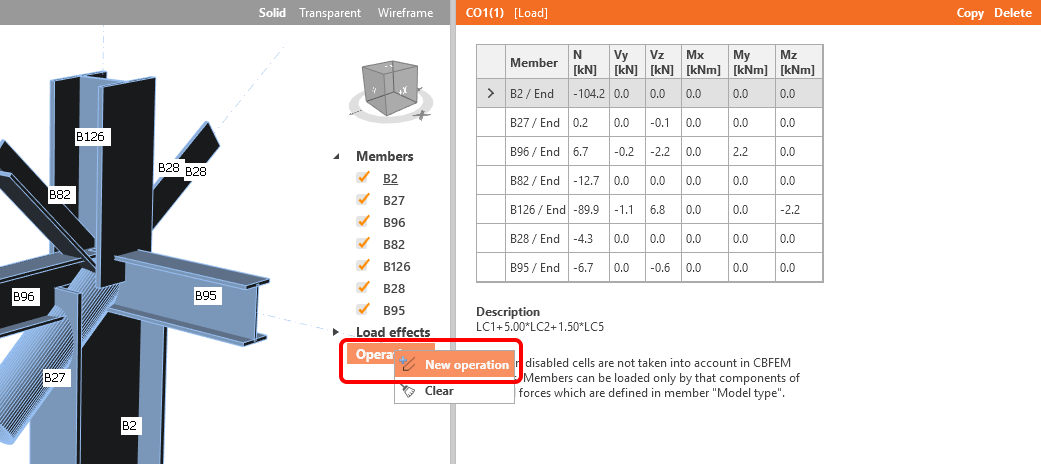

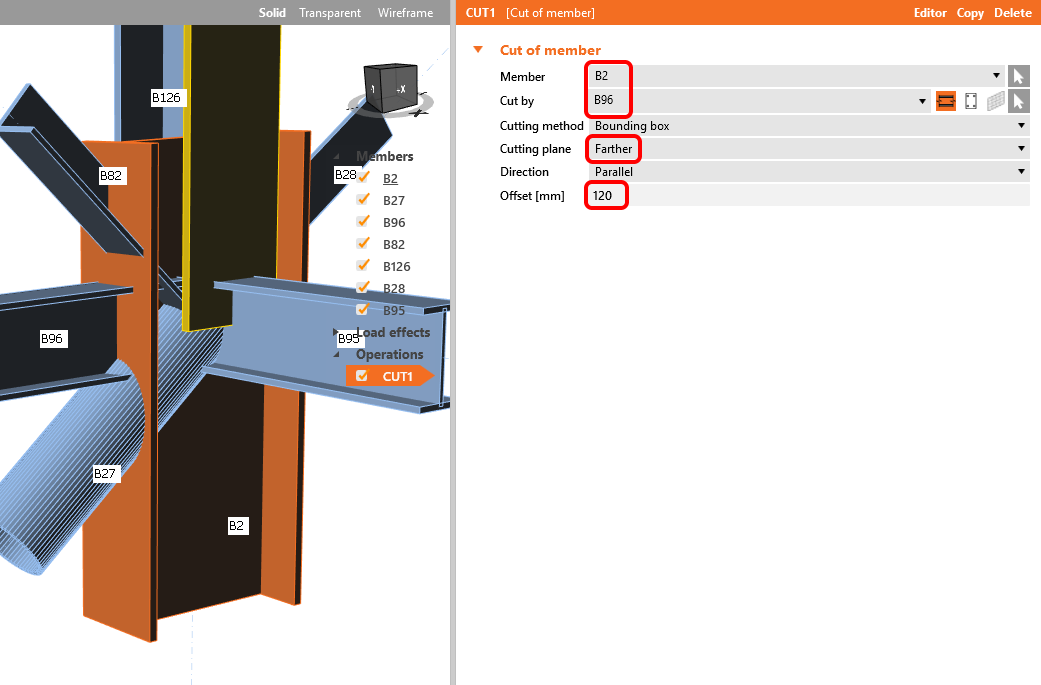

You will define a set of manufacturing operations to model connections between members. Hide the Load effects tree and right-click on Operations to add a new operation Cut.

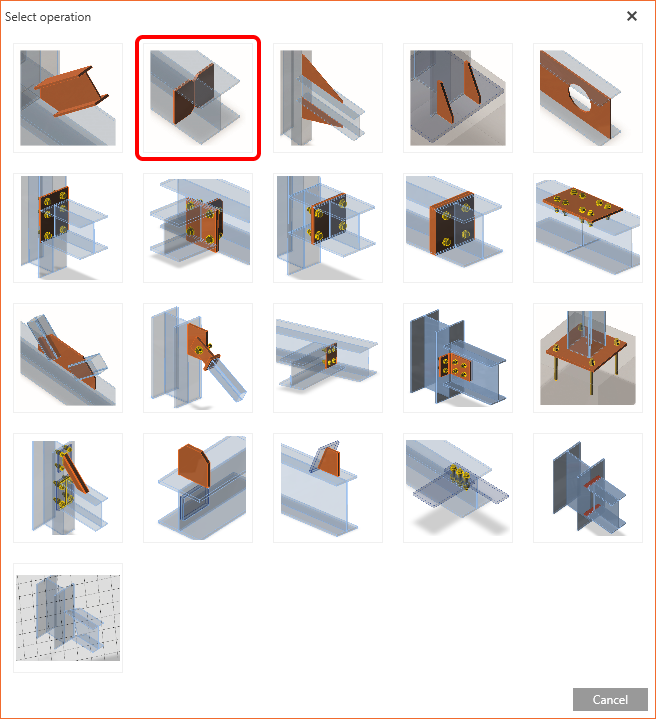

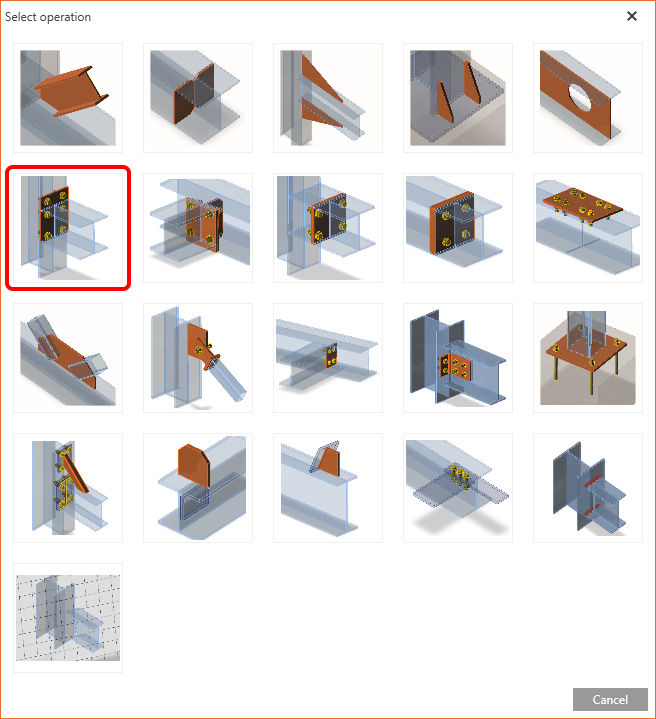

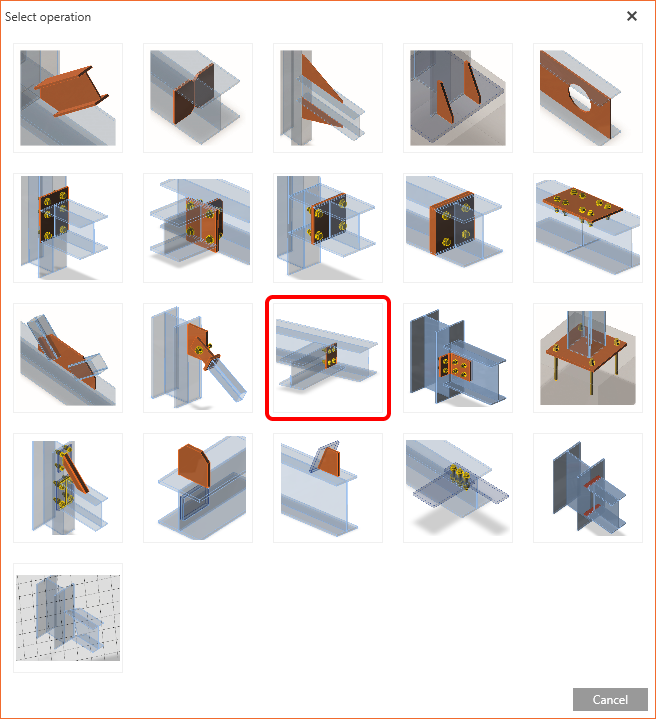

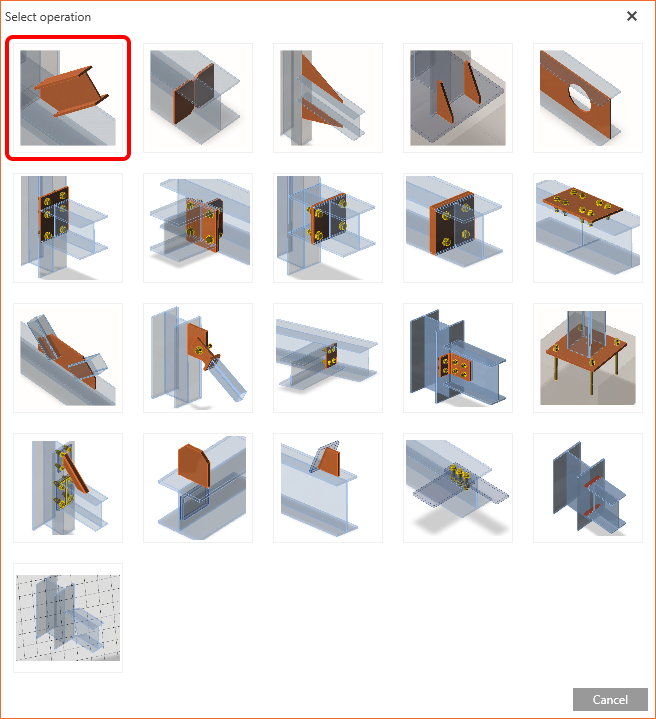

In the next step add another manufacturing operation Endplate and modify its parameters.

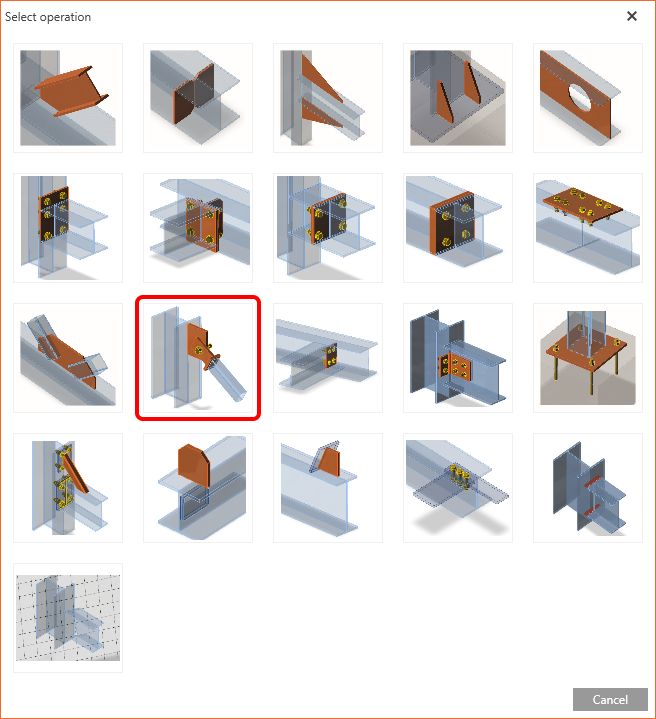

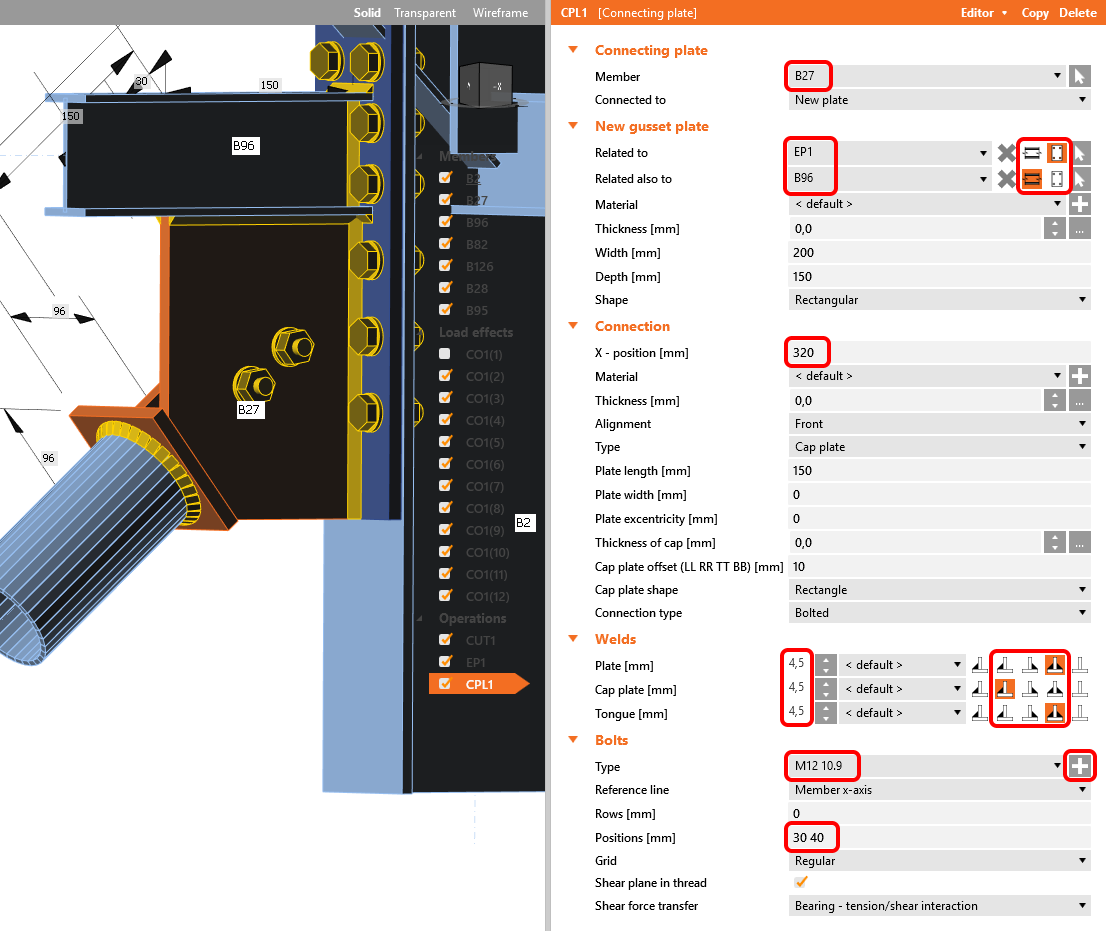

Then add a Connecting plate operation and set its parameters for the appropriate member.

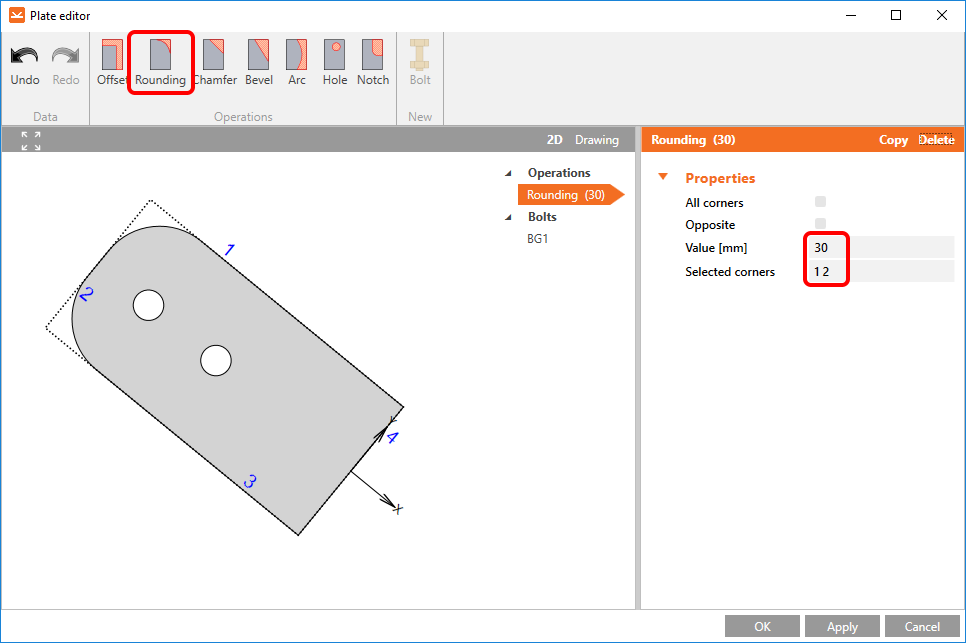

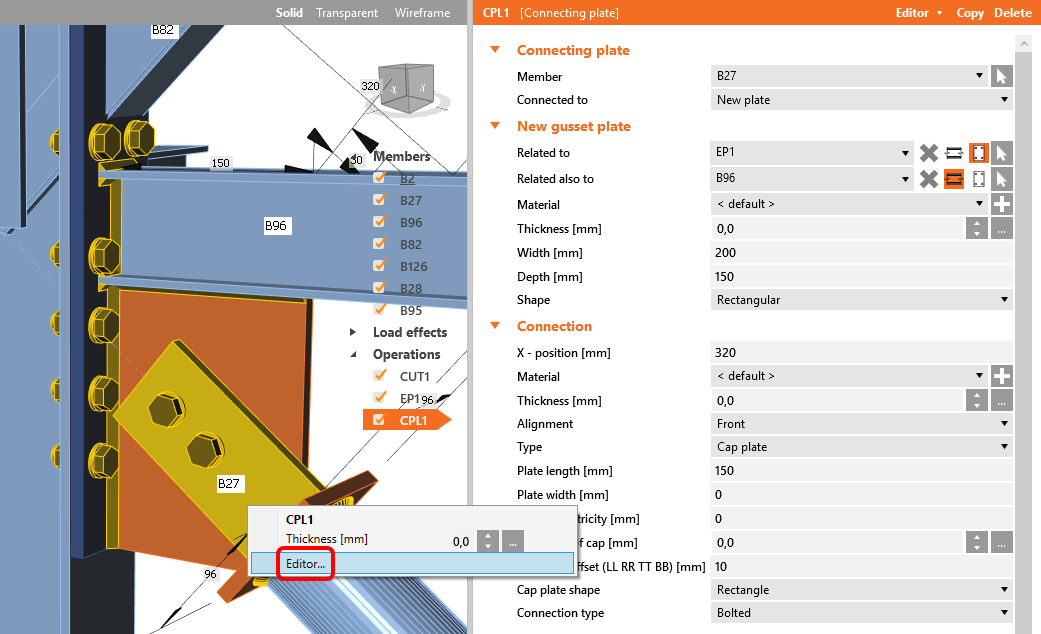

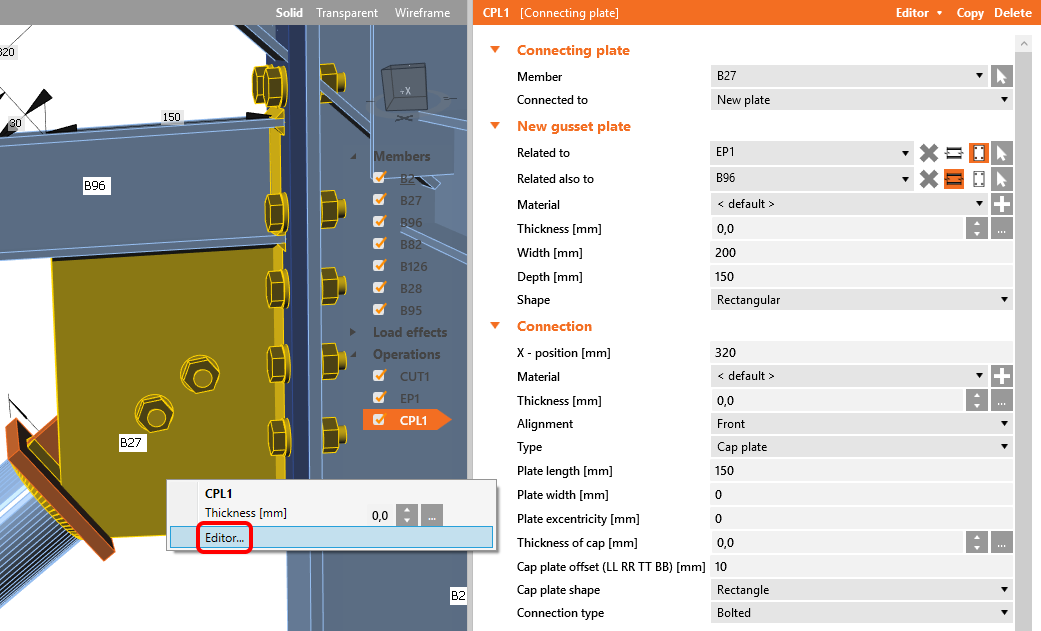

Right-click on the tongue plate, open the plate Editor and reshape the Tongue by adding an operation Rounding.

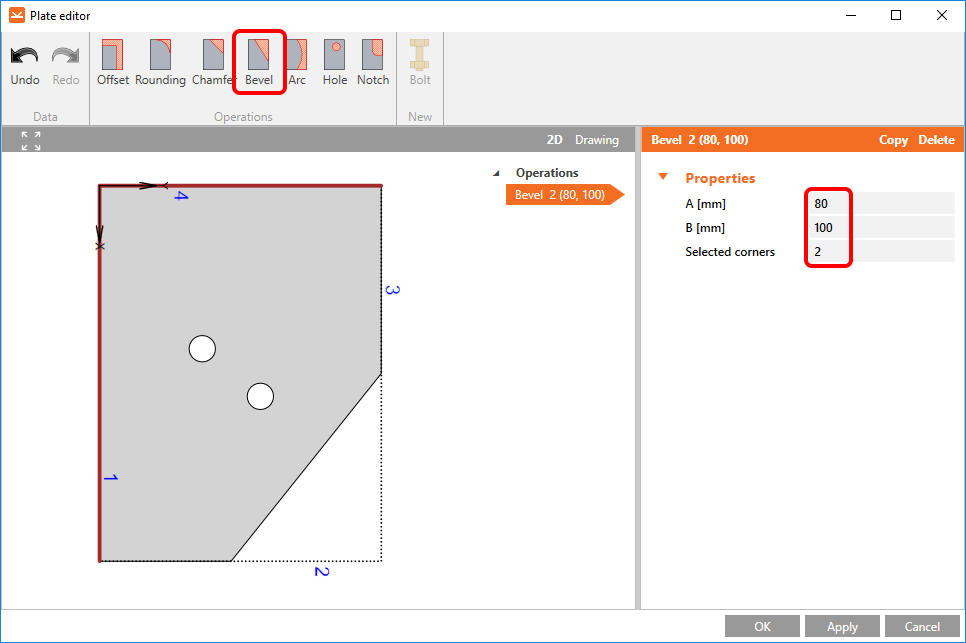

Next, you will again right-click on the gusset plate and in the Editor reshape the Gusset plate by adding a Bevel operation.

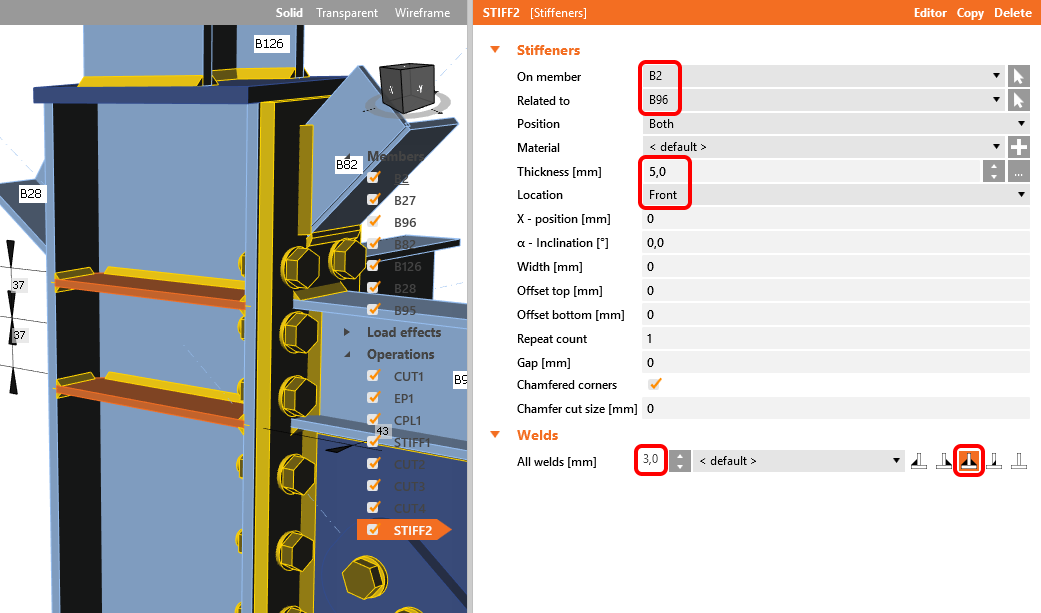

Now you can add a Stiffener operation and modify its properties.

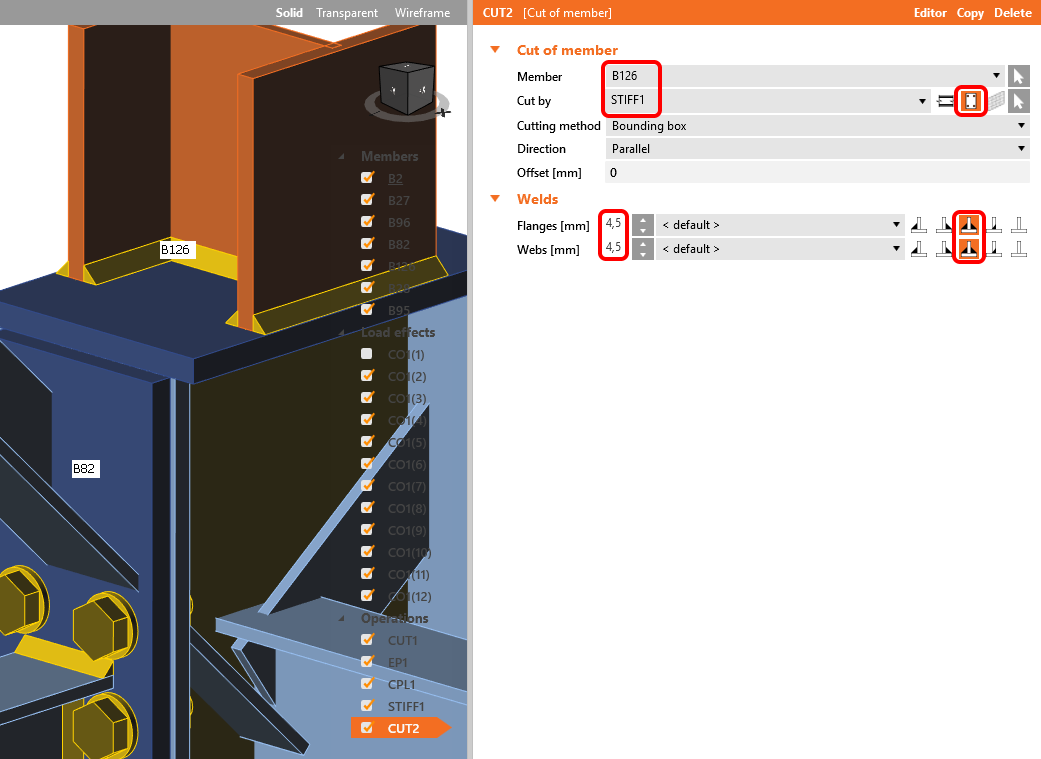

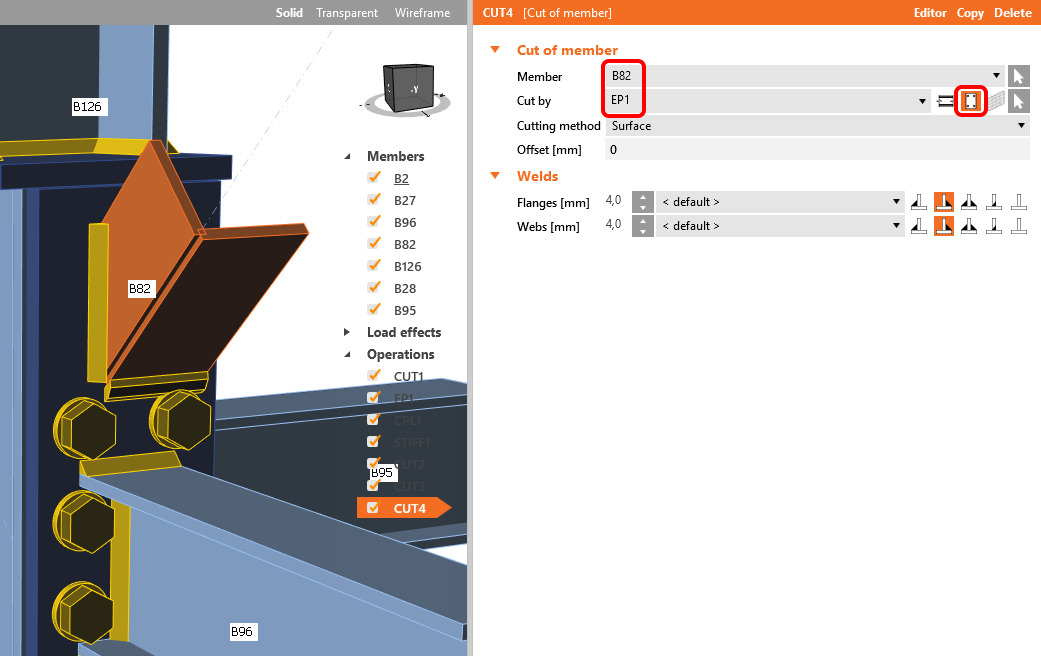

Add another Cut operation for the upper member.
Again, use the Cut operation for the diagonals.

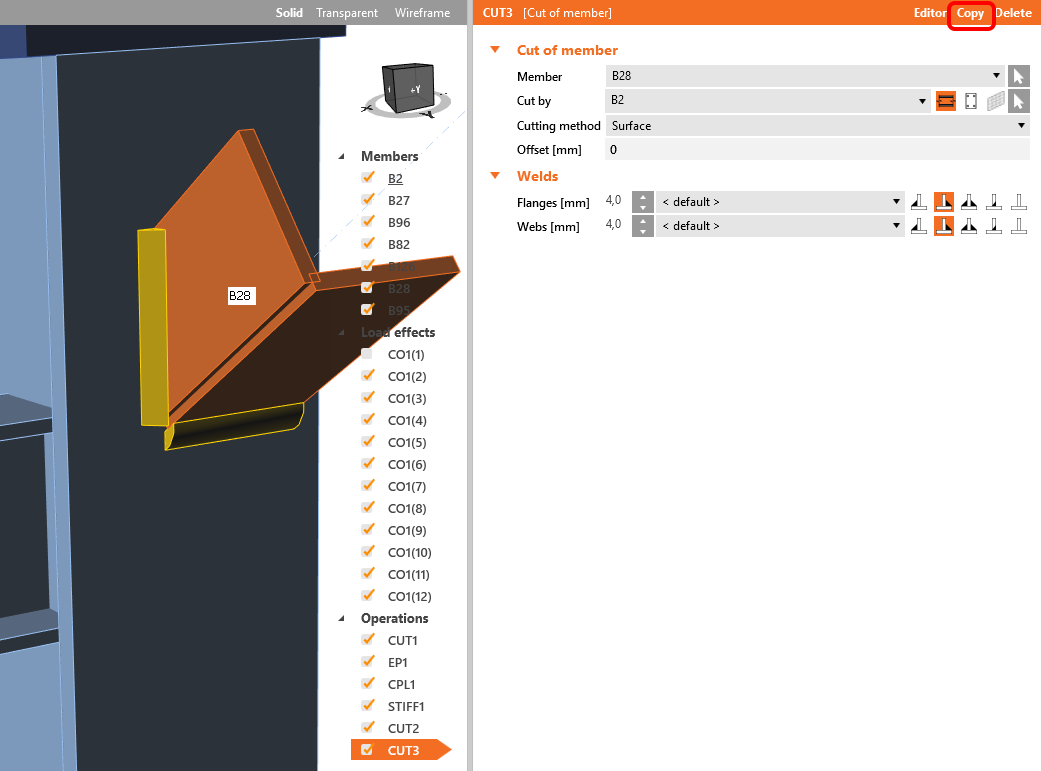

Copy the last cut operation and set it for the other diagonal.

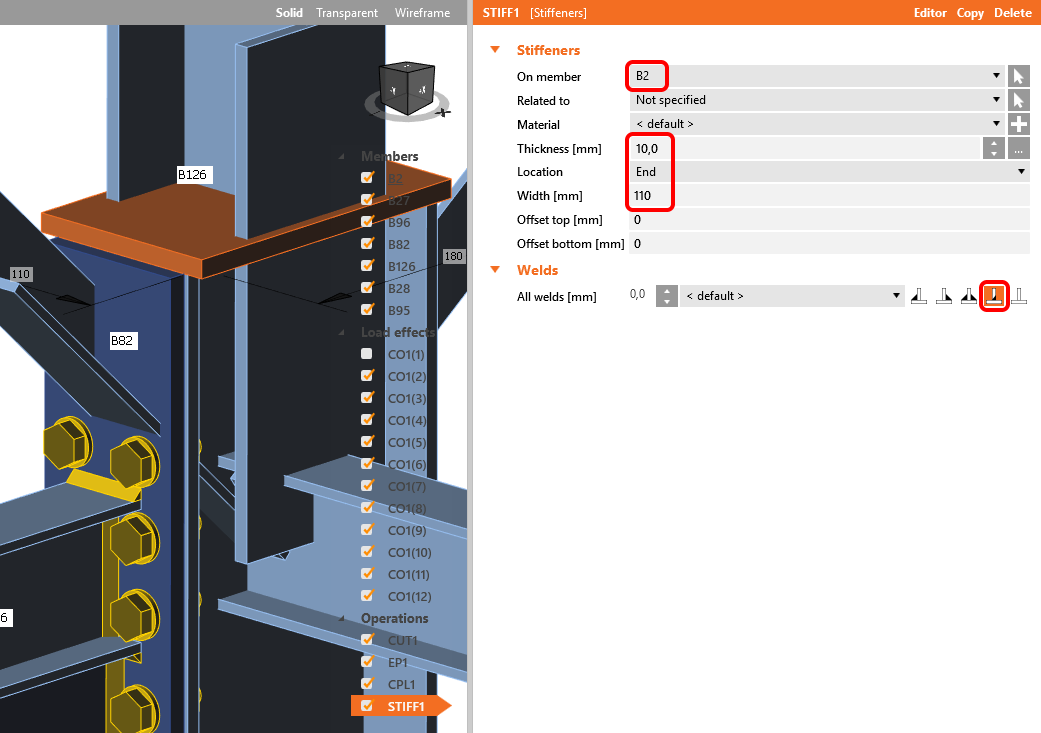

In the next step add a Stiffener to the main column.
Finish the design by adding a Fin plate operation to connect the last member.
4 Check

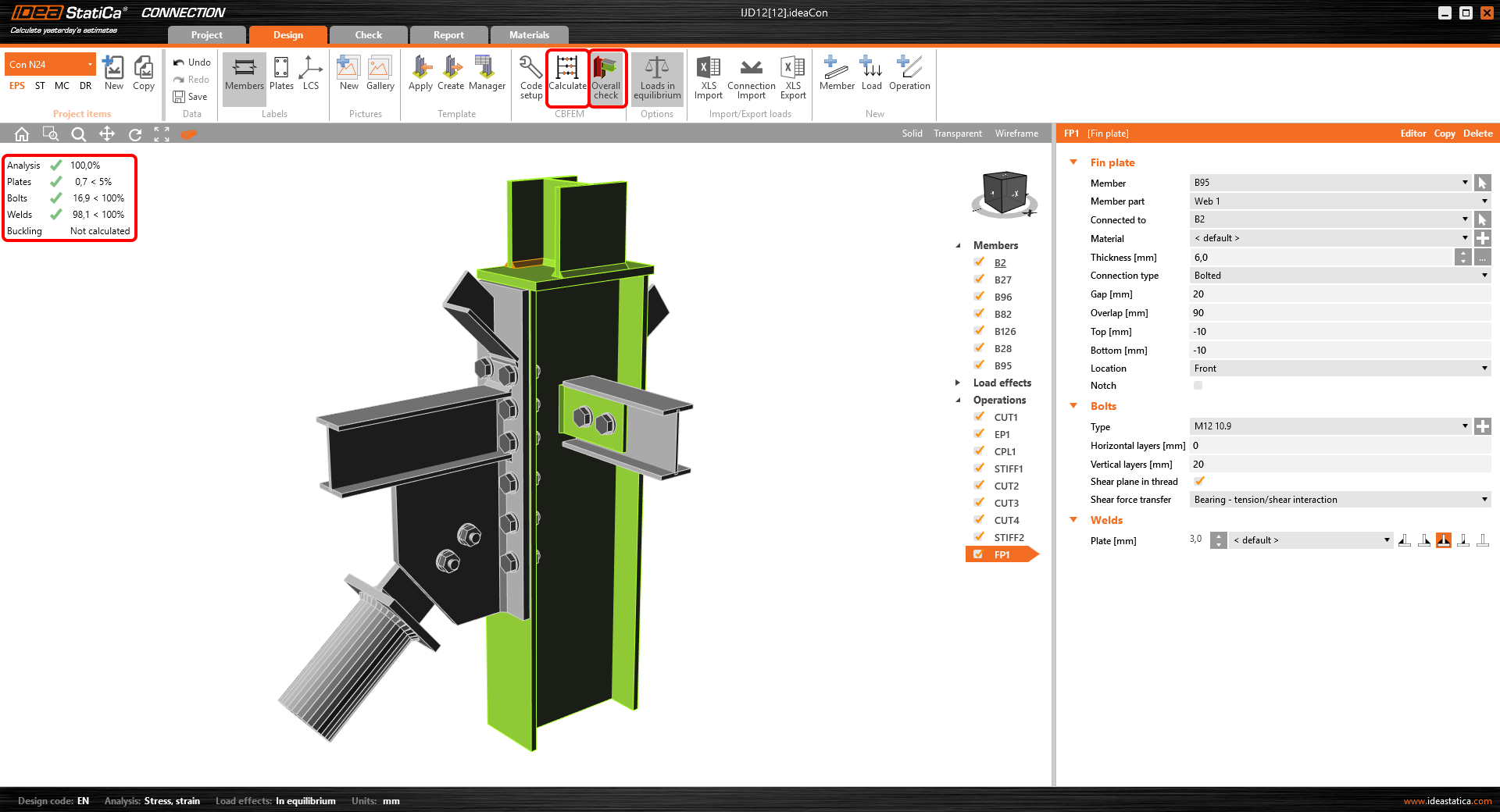

You can start the analysis by clicking Calculate in the ribbon. The analysis model is automatically generated, the calculation is performed for all the load cases and you can see the Overall check displayed together with basic values of check results.

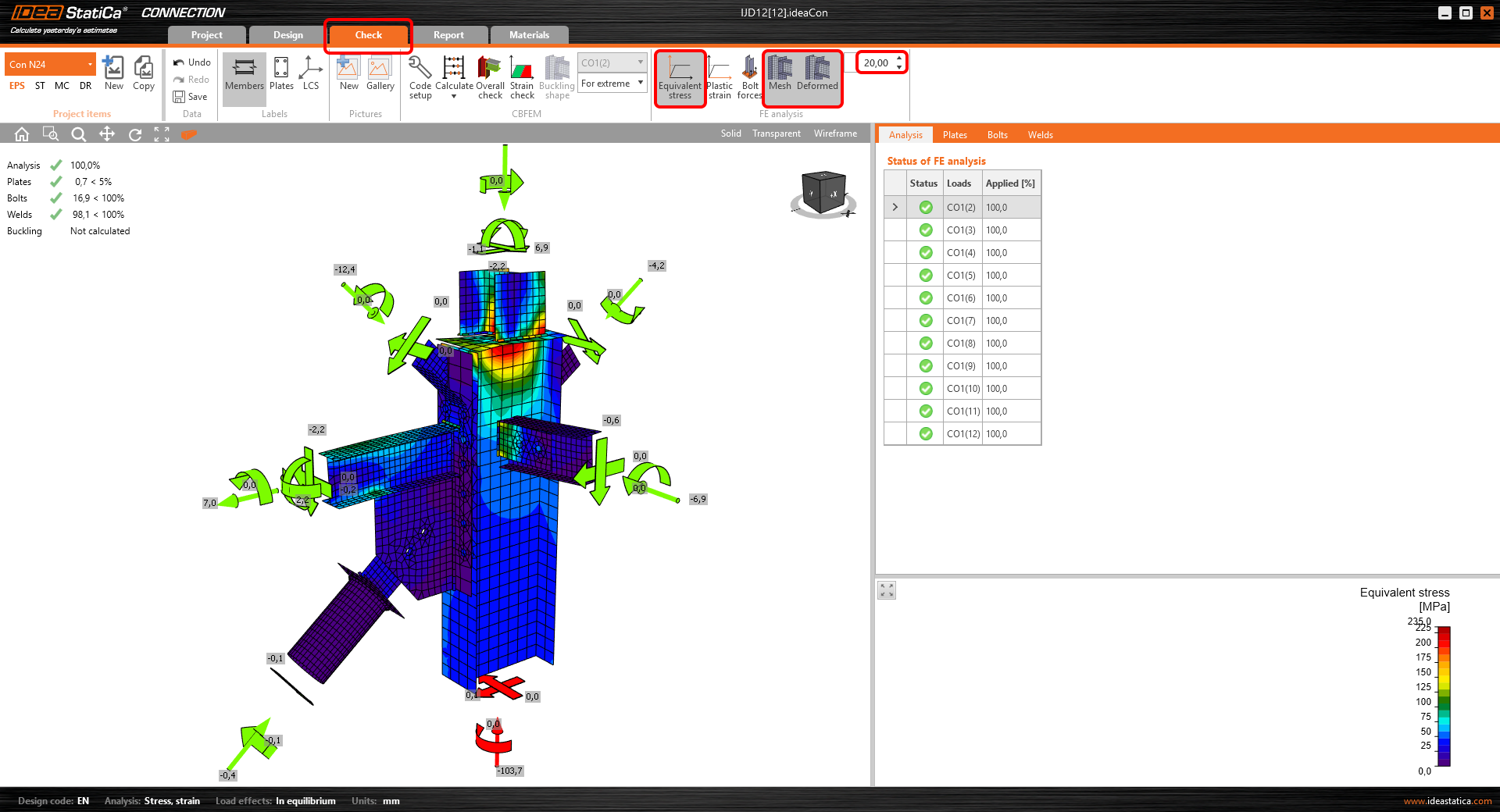

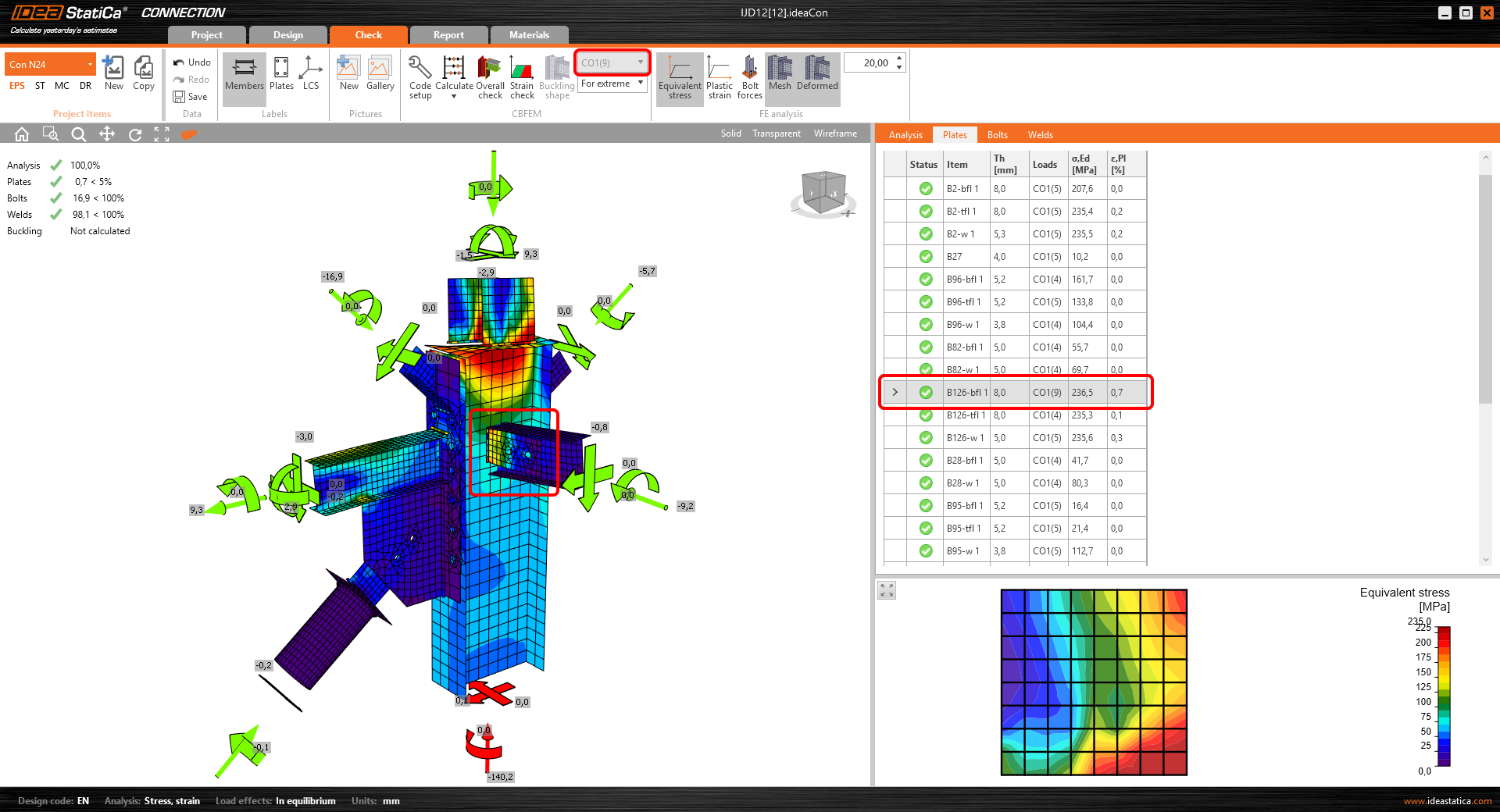

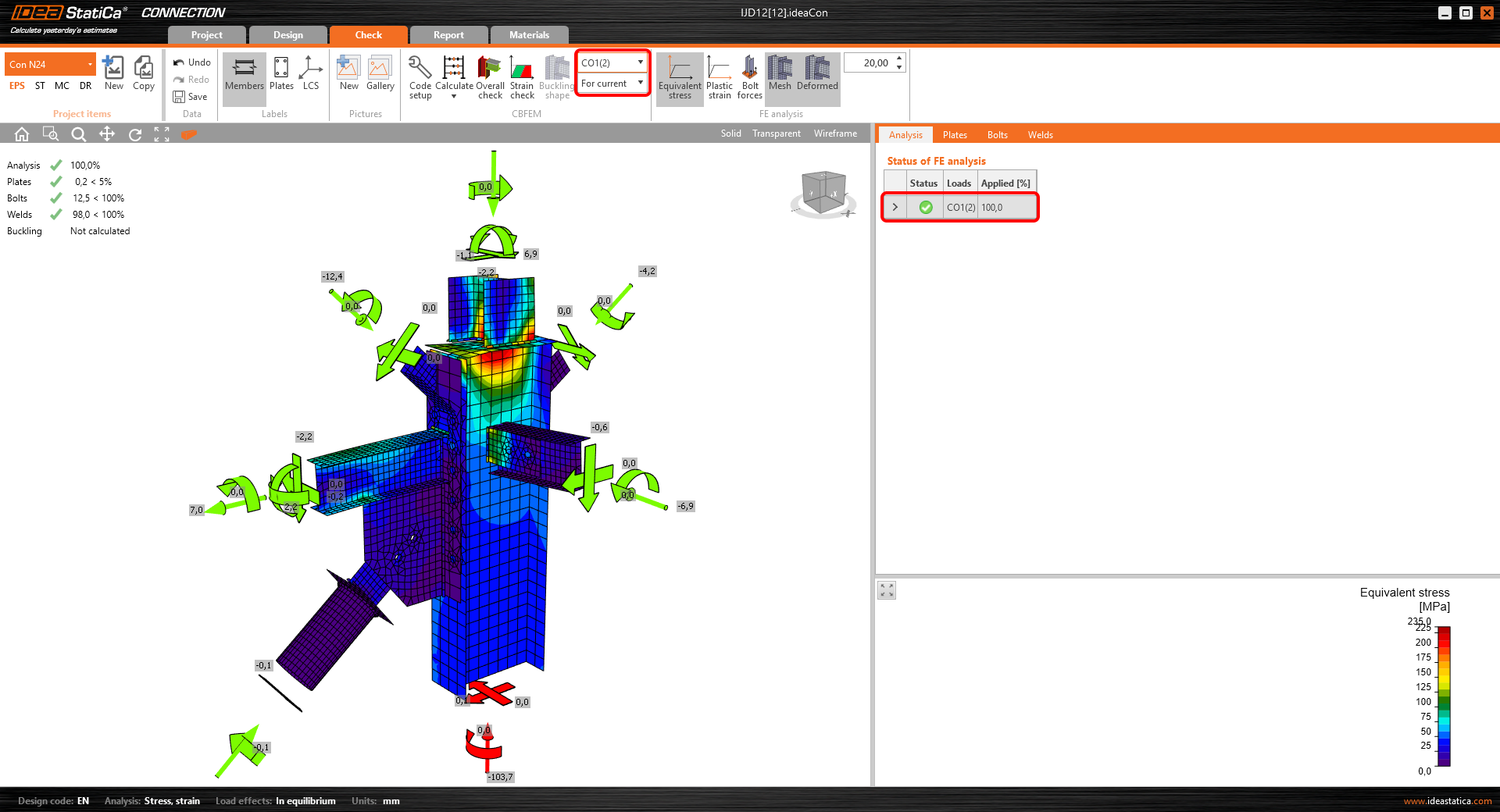

Go to the display tab Check and there activate Equivalent stress, Bolt forces, Mesh and Deformed and change the deformation scale in the ribbon to get a full picture of what is happening in the joint.
By default, you can see the For extreme results envelope of all the load effects, so the most unfavorable results are displayed all together. If you click on any item (e.g. the fin plate), it shows you which load effect is the most unfavorable for it in the ribbon.
You can also display and browse results for each load effect separately by changing the For the extreme option to For current in the ribbon.
5 Report

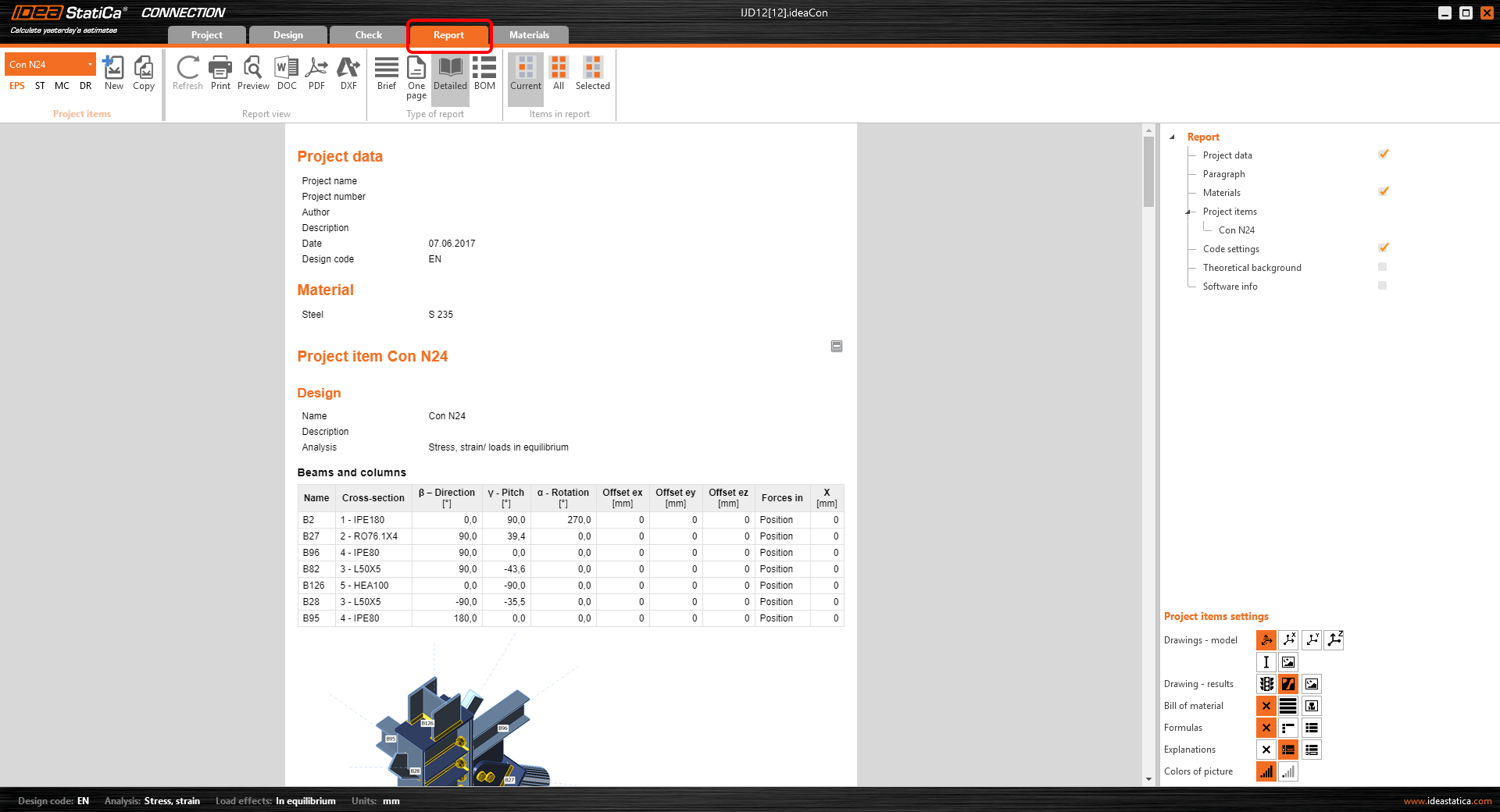

At last, go to the tab Report. IDEA StatiCa offers a fully customizable report to print out or save in an editable format.
You have imported a joint from SCIA Engineer and designed and code-checked it according to Eurocode.
6 How to update the project
Save the project and close the application Connection. All joints exported from an SCIA Engineer project to IDEA StatiCa are kept on the list as a part of the SCIA Engineer project file for later updates.
Note: In case you need to send a simple IDEA StatiCa file, you can "save as" a copy of the opened joint model to the desired folder
Go back to the SCIA Engineer model, change the cross-section of one of the diagonals, and start the Calculation of linear analysis again.

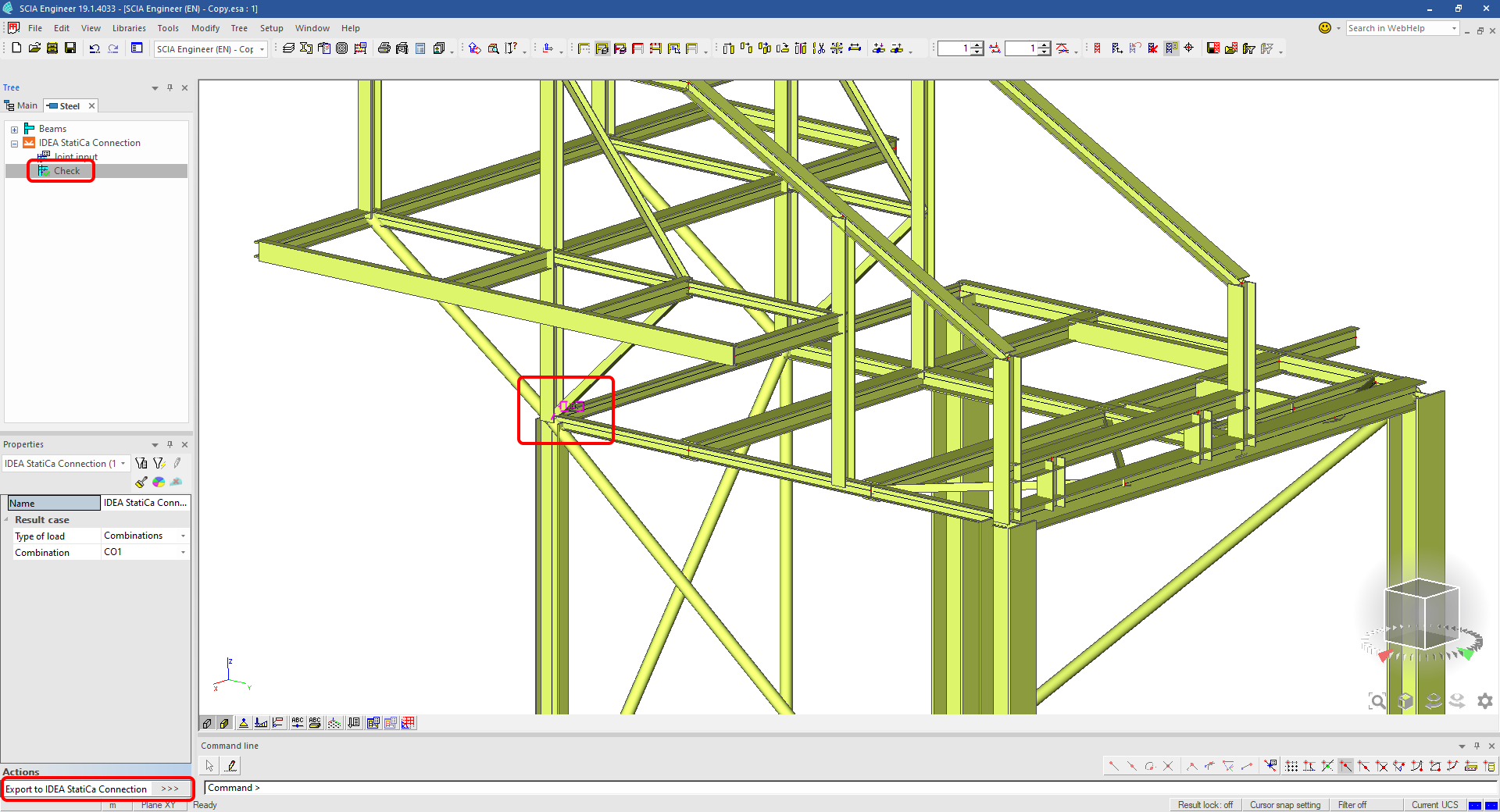

Open again the command Check, run the command Export to IDEA StatiCa Connection in the Actions menu, and select the joint sign in the workspace.
IDEA StatiCa opens and you can see the updated geometry while the design and settings adjust to the new state.
You can adjust the design, recalculate the joint code-check and save the project in IDEA StatiCa again and continue with exporting other joints.
Known limitations for SCIA Engineer
For now, the link works for a wide variety of connections/joints. However, please take into account yet unsupported functionality.
Limitation: Non-linear combinations can't be imported to the IDEA StatiCa Checkbot application.
Limitation: Rotation of members using "α" can not be imported from SCIA Engineer to Checkbot
Workaround: Rotate the member using "LCS Rotation" instead, the rotation of members will be imported correctly.
Limitation: Haunches modelled in SCIA Engineer are not imported to Checkbot.
Workaround: The haunches have to be modelled separately in IDEA StatiCa Connection using Operations.
Limitation: Eccentricity modelled using the "member system-line at" is not imported in version 25.0 and older. From the version 25.1.0, this limitation has been removed and members are imported with the defined system line.
Workaround: The eccentricity must be defined via an ez or ey value. The member system line must be set to "Centre".
With SCIA Engineer version 21.1, IDEA StatiCa introduced another option of how to use the BIM link between SCIA Engineer and the Checkbot application.
Limitation: This feature isn't embedded in the Legacy version of SCIA 21.1.
Workaround: Use default UX of SCIA 21.1.
Limitation: SCIA is unable to create a SAF file used for Bimlink communication. The issue represents itself with the following error in Checkbot and the following message when exporting the SAF model directly from SCIA.
Workaround: To fix it, change the selection of the transfer method from Tributary Area to Accurate (FEM).
Limitation: Standard combinations can not be imported to the IDEA StatiCa Checkbot Application.
Workaround: Explode the combinations in SCIA Engineer to either envelopes or linear combinations before the export.
Limitation: Members with LCS type defined other than "Standard" cause fail of Import to Checkbot
Workaround: When the following error appears during an import to Checkbot.
Navigate to SCIA and perform a manual export of SAF file.
If the export fails, click on "INFO" and the top lines inform you about the members that uses other LCS than "standard".
Locate the members and change their LCS to "standard". Recalculate and launch the BIM link again.
Limitation: Envelope combinations in Scia engineer containing load cases with a defined “Master load case” are not combined correctly after import in the IDEA StatiCa Checkbot application due to missing information in the SAF file.
Workaround: Before exporting, explode envelope combinations contained in SCIA Engineer and containing load cases with a defined “Master load case” to linear combinations.
Limitation: The Relation Together in the Load group is not taken into account after import in the IDEA StatiCa Checkbot application and it caused inconsistent internal forces between Scia Engineer and Checkbot.
Workaround: Before exporting, explode the envelope combinations to linear combinations in Scia Engineer. The second way is to use the direct link to IDEA StatiCa Connection.
